Wikipedia iOS

This tutorial uses Spoor to instrument Wikipedia's iOS app.

You'll learn Spoor's pipeline to automatically inject instrumentation into your source code, build and run your Spoor-instrumented program, symbolize the trace, and visualize and analyze your symbolized trace using Perfetto.

0. Prerequisites

0.1 Setup and dependencies

• MicrosoftSpoor.xctoolchain: Spoor's Xcode toolchain
• spoor: Postprocessing tool
• Xcode

Version

This tutorial uses the following tools. Your mileage may vary with newer or older versions.

MicrosoftSpoor.xctoolchain

0.0.0

Xcode

xcodebuild -version

Xcode 13.3
Build version 13E113

spoor

spoor --version

spoor 0.0.0

0.2 Download the code

Git (SSH)Git (HTTPS)cURL

git clone \
  --branch releases/6.8.2 \
  --depth 1 \
  git@github.com:wikimedia/wikipedia-ios.git

git clone \
  --branch releases/6.8.2 \
  --depth 1 \
  https://github.com/wikimedia/wikipedia-ios.git

curl \
  --location \
  --output wikipedia-ios.tar.gz \
  https://github.com/wikimedia/wikipedia-ios/archive/refs/tags/releases/6.8.2.tar.gz &&
tar -xf wikipedia-ios.tar.gz &&
mv wikipedia-ios-releases-6.8.2 wikipedia-ios

cd wikipedia-ios

Version

This tutorial is based on Wikipedia iOS version 6.8.2. Your mileage may vary with newer or older versions.

Sanity test

Build and run the (uninstrumented) app to make sure that everything works as expected.

A clean build takes around four minutes (depending on how baller your computer is).

UICommand line

open Wikipedia.xcodeproj

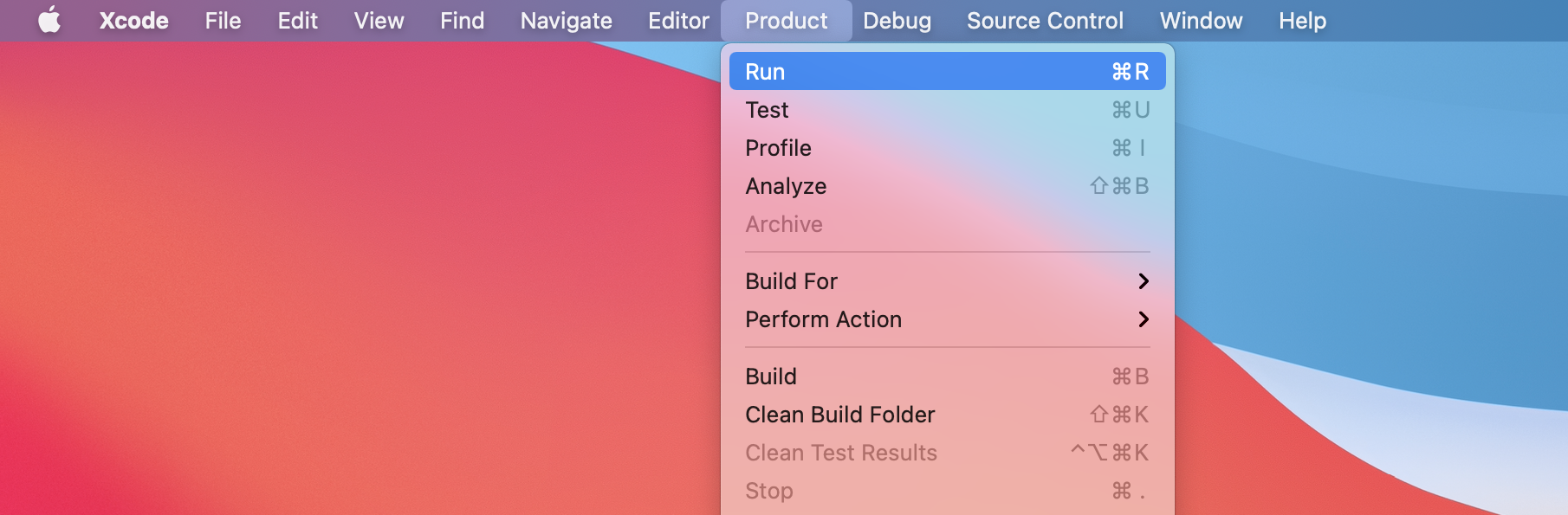

Build and run: Product > Run (⌘R).

xcodebuild build \
  -project Wikipedia.xcodeproj \
  -scheme Wikipedia \
  -configuration Debug \
  -sdk iphonesimulator \
  -arch x86_64

open -a Simulator.app

xcrun simctl \
  install \
  booted \
  ~/Library/Developer/Xcode/DerivedData/Wikipedia-xxxxxxxxxxxxxxxxxxxxxxxxxxxx/Build/Products/Debug-iphonesimulator/Wikipedia.app

xcrun simctl launch booted org.wikimedia.wikipedia

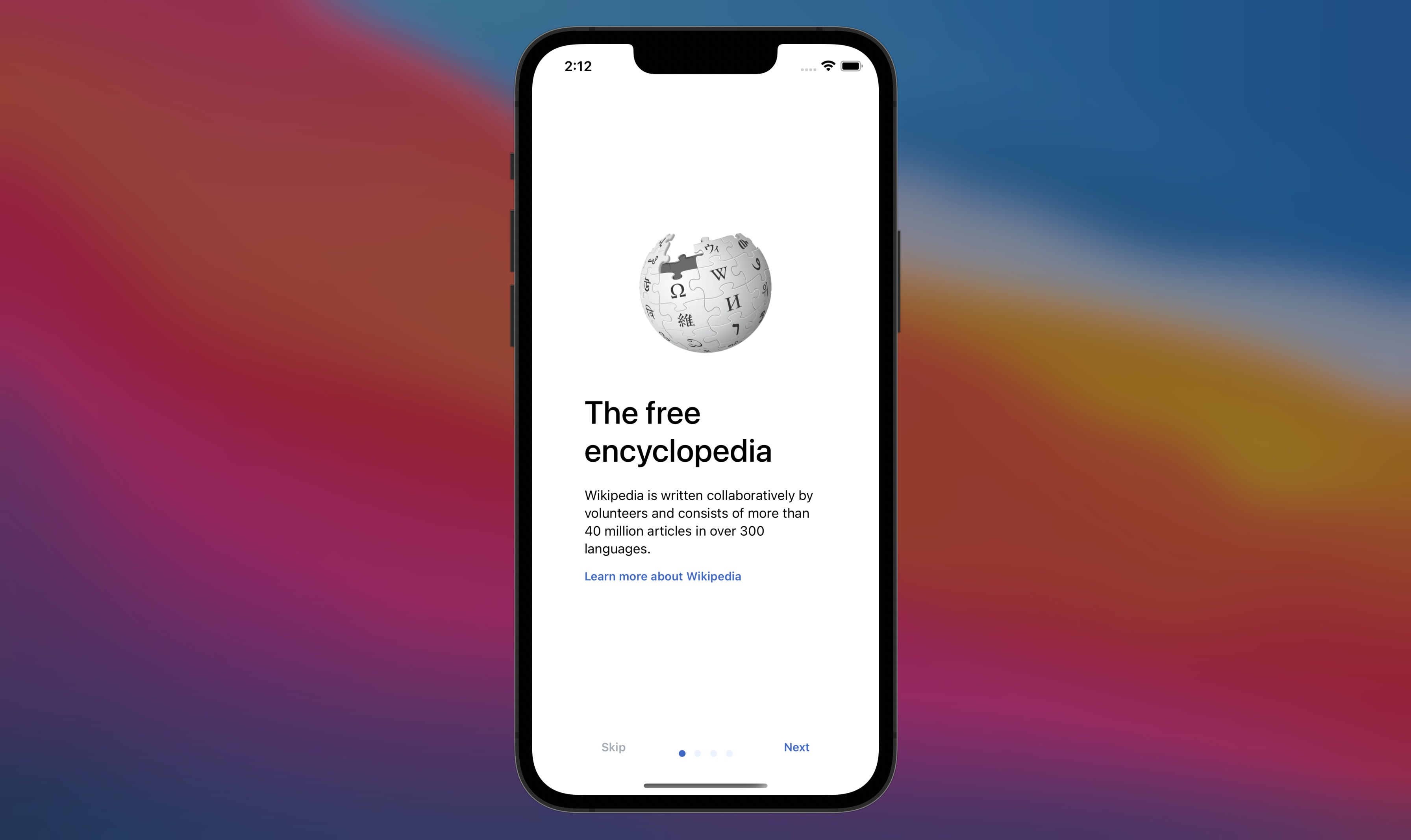

The app launches in the iOS Simulator.

1. Instrument the app

UICommand line

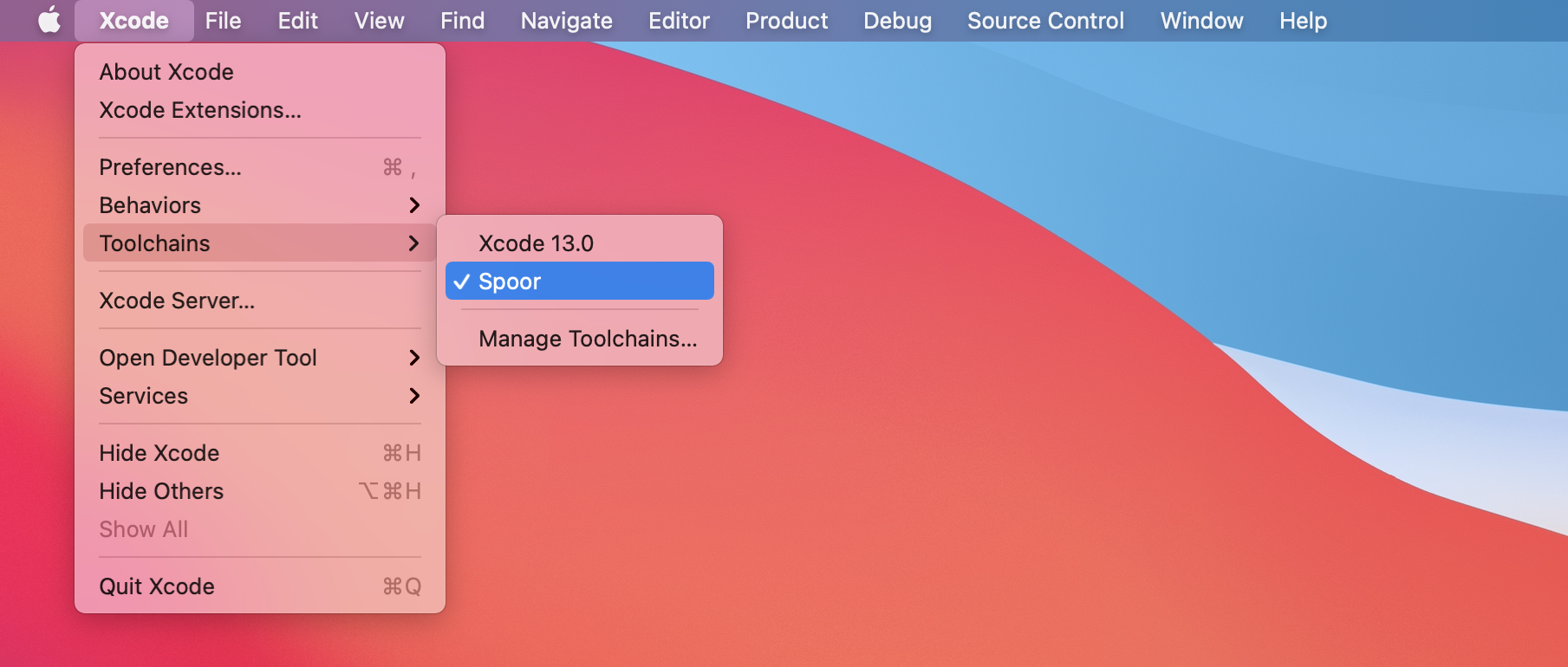

Select Spoor from Xcode's toolchains list: Xcode > Toolchains > Spoor.

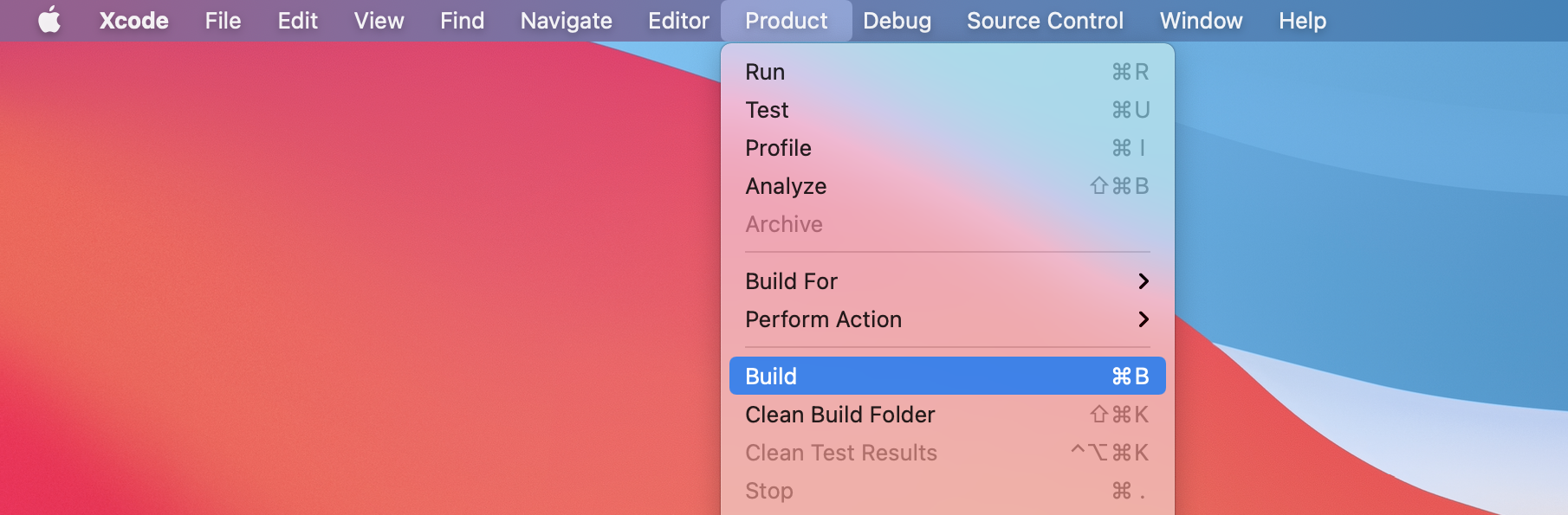

Build: Product > Build (⌘B).

xcodebuild build \
  -project Wikipedia.xcodeproj \
  -scheme Wikipedia \
  -configuration Debug \
  -sdk iphonesimulator \
  -arch x86_64 \
  -toolchain Spoor

Spoor generates a .spoor_symbols file next to each object file.

find ~/Library/Developer/Xcode/DerivedData/Wikipedia-xxxxxxxxxxxxxxxxxxxxxxxxxxxx \
  -name "*.spoor_symbols"

/Users/you/Library/Developer/Xcode/DerivedData/Wikipedia-xxxxxxxxxxxxxxxxxxxxxxxxxxxx/Build/Intermediates.noindex/Wikipedia.build/Debug-iphonesimulator/WMF.build/Objects-normal/x86_64/NavigationState.spoor_symbols
/Users/you/Library/Developer/Xcode/DerivedData/Wikipedia-xxxxxxxxxxxxxxxxxxxxxxxxxxxx/Build/Intermediates.noindex/Wikipedia.build/Debug-iphonesimulator/WMF.build/Objects-normal/x86_64/NSDate+WMFRelativeDate.spoor_symbols
/Users/you/Library/Developer/Xcode/DerivedData/Wikipedia-xxxxxxxxxxxxxxxxxxxxxxxxxxxx/Build/Intermediates.noindex/Wikipedia.build/Debug-iphonesimulator/WMF.build/Objects-normal/x86_64/CIContext+WMFImageProcessing.spoor_symbols
/Users/you/Library/Developer/Xcode/DerivedData/Wikipedia-xxxxxxxxxxxxxxxxxxxxxxxxxxxx/Build/Intermediates.noindex/Wikipedia.build/Debug-iphonesimulator/WMF.build/Objects-normal/x86_64/NSError+WMFExtensions.spoor_symbols
/Users/you/Library/Developer/Xcode/DerivedData/Wikipedia-xxxxxxxxxxxxxxxxxxxxxxxxxxxx/Build/Intermediates.noindex/Wikipedia.build/Debug-iphonesimulator/WMF.build/Objects-normal/x86_64/CacheGroup+CoreDataProperties.spoor_symbols
...

2. Run with instrumentation

Create a directory to hold the trace files and configure Spoor's runtime to save the traces in that path.

mkdir trace

UICommand line

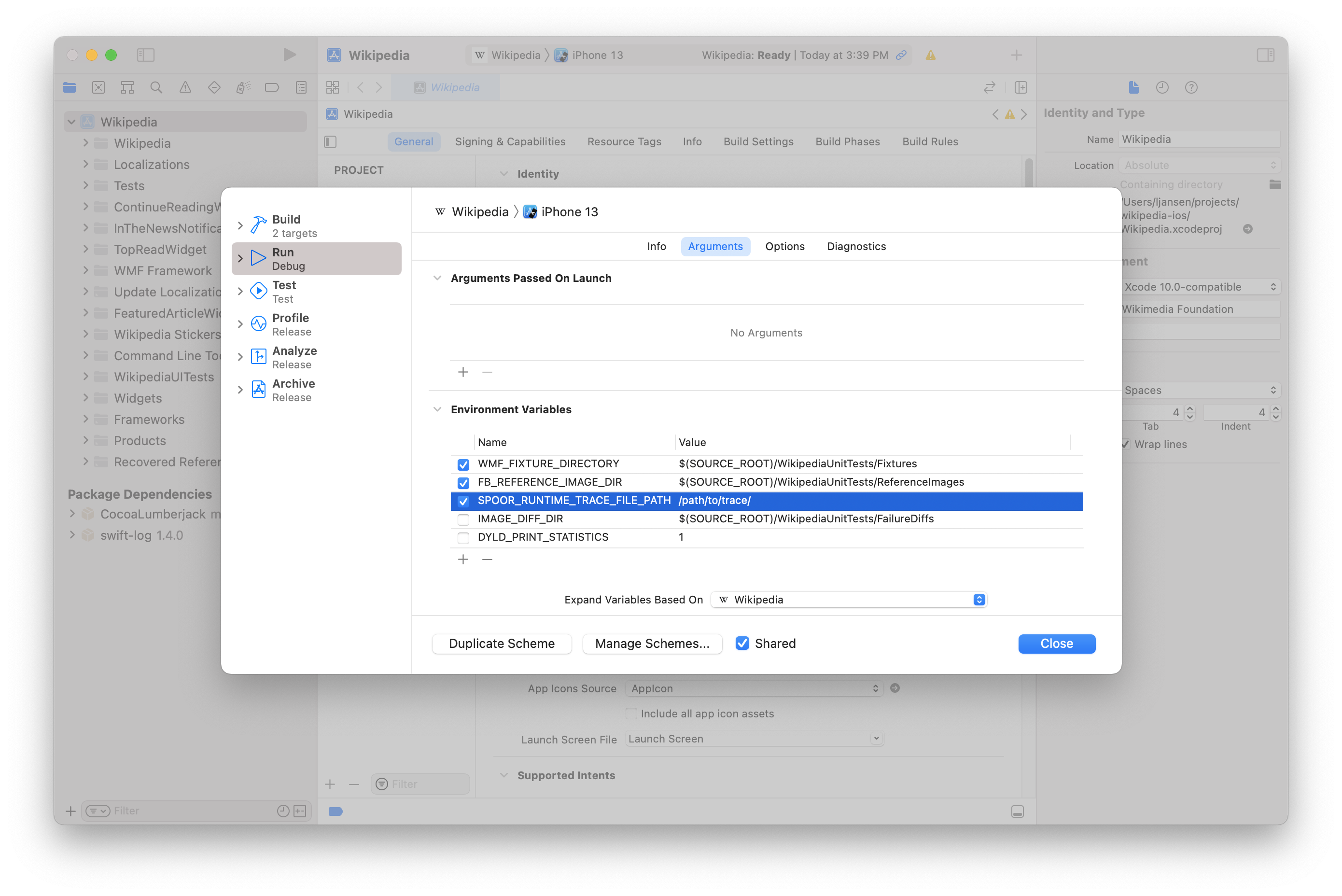

Configure Wikipedia's scheme with a run action environment variable that sets the trace file output path: Wikipedia > Edit Scheme...

Key	Value
SPOOR_RUNTIME_TRACE_FILE_PATH	/path/to/trace/

Run: Product > Run (⌘R).

Appling environment variables

Environment variables are only applied when launching the app from Xcode (i.e., not when tapping the app's icon on the homescreen).

Install the instrumented build.

xcrun simctl \
  install \
  booted \
  ~/Library/Developer/Xcode/DerivedData/Wikipedia-xxxxxxxxxxxxxxxxxxxxxxxxxxxx/Build/Products/Debug-iphonesimulator/Wikipedia.app

Launch the app with a SPOOR_RUNTIME_TRACE_FILE_PATH environment variable configuration.

SIMCTL_CHILD_SPOOR_RUNTIME_TRACE_FILE_PATH="/path/to/trace/" xcrun simctl \
  launch \
  booted \
  org.wikimedia.wikipedia

Spoor's runtime emits trace files in the trace folder configured above.

ls trace

xxxxxxxxxxxxxxxx-xxxxxxxxxxxxxxxx-xxxxxxxxxxxxxxxx.spoor_trace
...

3. Process and analyze the trace

Finally, parse and symbolize the trace data to view it in Perfetto's trace viewer.

3.1 Parse and symbolize the trace

Use spoor, Spoor's postprocessing tool, to parse the .spoor_trace files in your trace folder, symbolize the trace with the spoor_symbols files in DerivedData, and output a Perfetto-compatible trace.

spoor \
  /path/to/trace/ \
  ~/Library/Developer/Xcode/DerivedData/Wikipedia-xxxxxxxxxxxxxxxxxxxxxxxxxxxx \
  --output_file=wikipedia-ios.perfetto

3.2 Visualize the trace

Open wikipedia-ios.perfetto in ui.perfetto.dev, Perfetto's trace viewer.

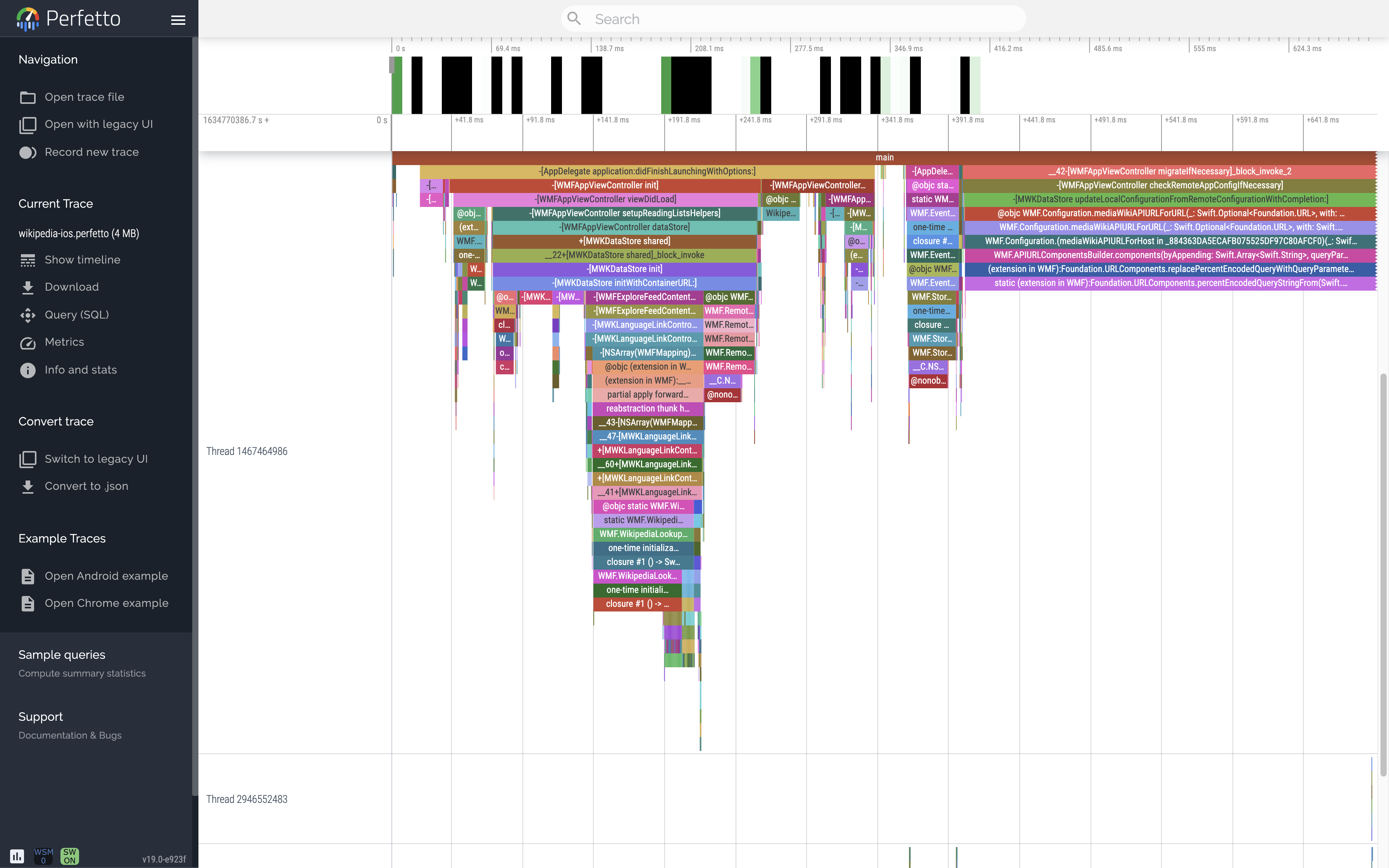

The flame graph timeline visualization shows the stack trace of the app's boot over time.
